RCM01

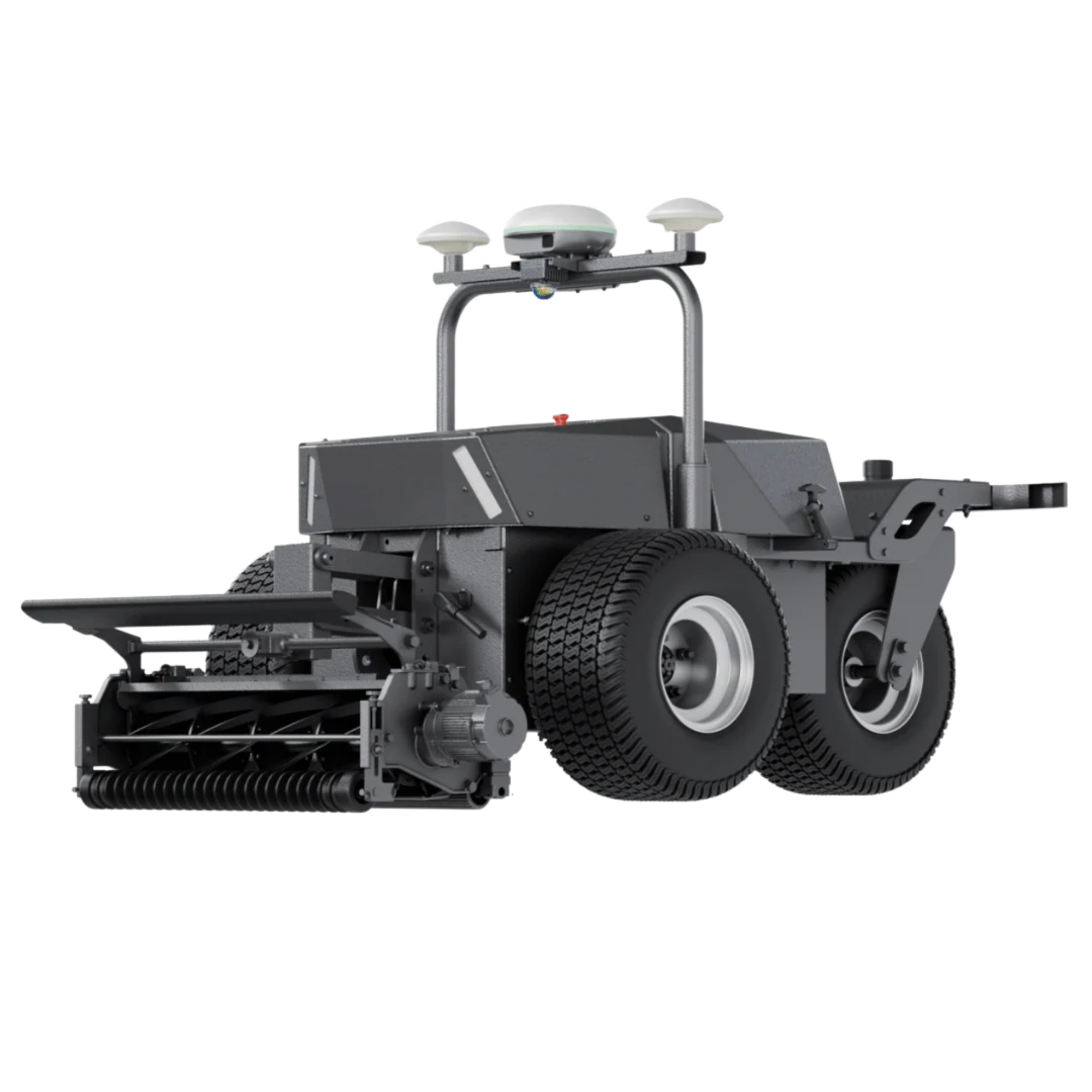

The FJD Titan is an autonomous robotic mower designed for professional turf maintenance across golf courses, sports fields, and large outdoor spaces. Featuring precision cutting, intelligent navigation, and automated multi-field management, it delivers consistent mowing with minimal manual intervention. With an optional line marking kit, the Titan also supports accurate sports field marking, helping organizations streamline turf maintenance and improve operational efficiency.

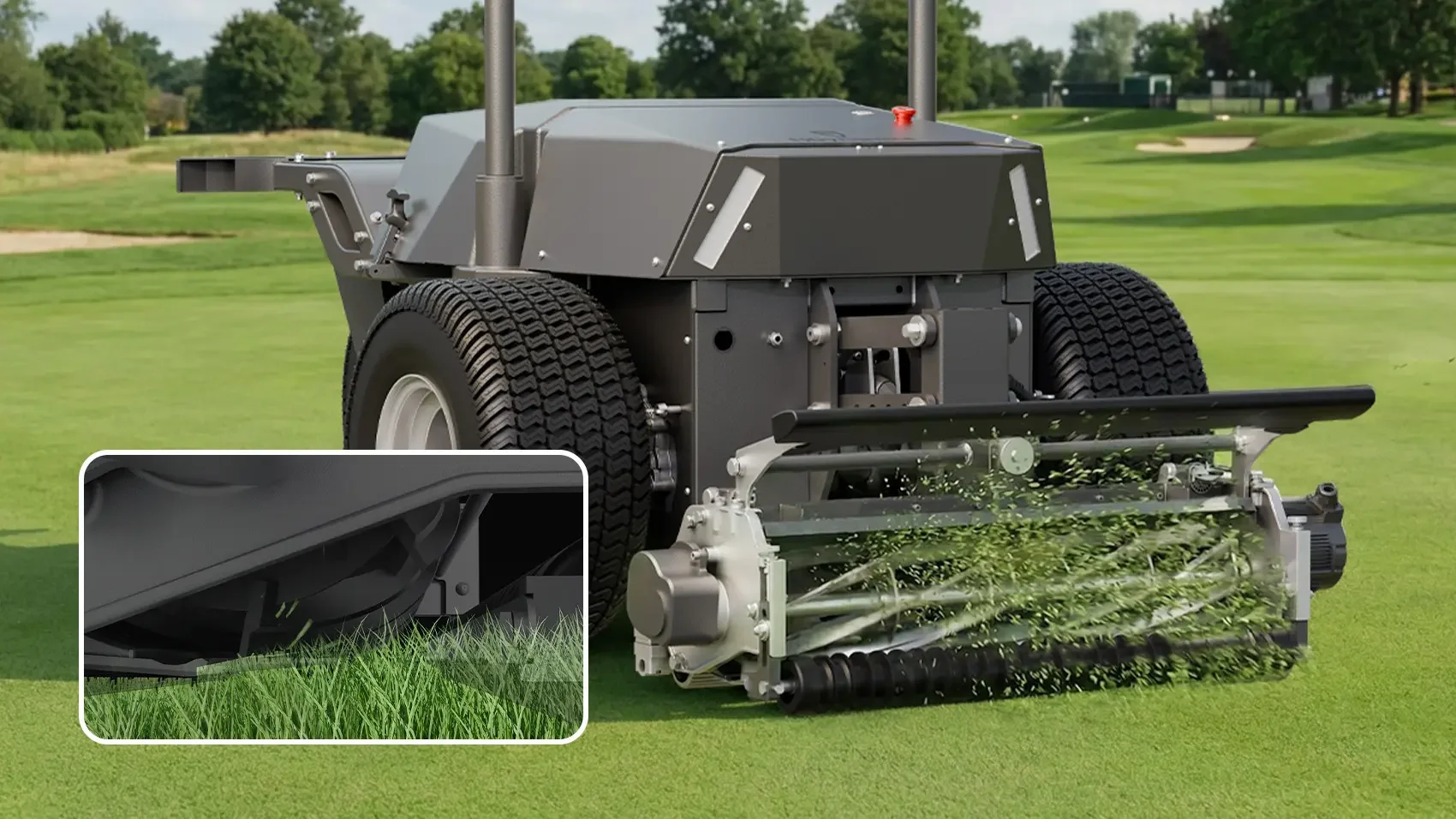

Uses an eight-blade cylinder cutting system to deliver clean, scissor-like cuts, promoting healthier turf and consistent playing surfaces.
precision reel cutting
Key Features
smart Navigation
Combines RTK and LiDAR technology for accurate positioning and reliable autonomous mowing, including areas beneath trees and around obstacles.
professional striping
Creates defined turf patterns with adjustable mowing angles and customizable striping widths for a polished, professional appearance.
automated turf management
Supports nighttime mowing, multi-zone scheduling, and remote monitoring through the FJD app and Greenmaster Platform.
Applications
Golf Courses: Maintain fairways and other suitable golf course turf areas with precise, consistent reel cutting.
Golf Resorts & Country Clubs: Automate routine turf maintenance while maintaining professional playing surfaces and defined striping patterns.
Sports Fields & Athletic Facilities: Support precision mowing and professional turf presentation on suitable natural grass athletic fields.
Professional Turf Management: Streamline mowing across multiple designated areas with automated scheduling, remote monitoring, and customizable mowing patterns.
| Specification | Details |
|---|---|
| Dimensions | 1,905 x 1,077 x 1,077 mm (75 x 42.4 x 42.4 in.) |
| Weight | 364 kg (802.5 lbs) |
| Maximum Mowing Area per Hour | 3,000 m² (0.74 acres) |
| Maximum Mowing Area per Charge | 30,000 m² (7.4 acres) |
| 24-Hour Mowing Coverage | Up to 48,000 m² (11.9 acres) |
| 72-Hour Mowing Coverage | Up to 144,000 m² (35.6 acres) |
| Cutting Width | 685 mm (27 inches) |
| Cutting Height | 7–44 mm (0.3–1.7 inches) |
| Reel Cutting System | 1 reel with 8 blades |
| Reel Speed | 300–2,200 RPM |
| Reel Diameter | 177 mm (7 inches) |
| Battery Runtime | Up to 10 hours |
| Charging Time | Approximately 5 hours |
| Battery Capacity | 8 kWh |
| Battery System | Fast Battery Swapping |
| Maximum Climbing Ability | 20° |
| Maximum Mowing Slope | 15° |
| Operating Temperature | -20°C to 45°C (-4°F to 113°F) |
| Water Resistance | IPX4 |
| Navigation | RTK and LiDAR |
| Connectivity | 4G and Wireless Connectivity |
| Boundary Type | Virtual Wire |
| Cutting Mode | Customized Angle Mowing |
| Software Updates | Over-the-Air (OTA) |
| Remote Management | FJD App and Greenmaster Platform |
