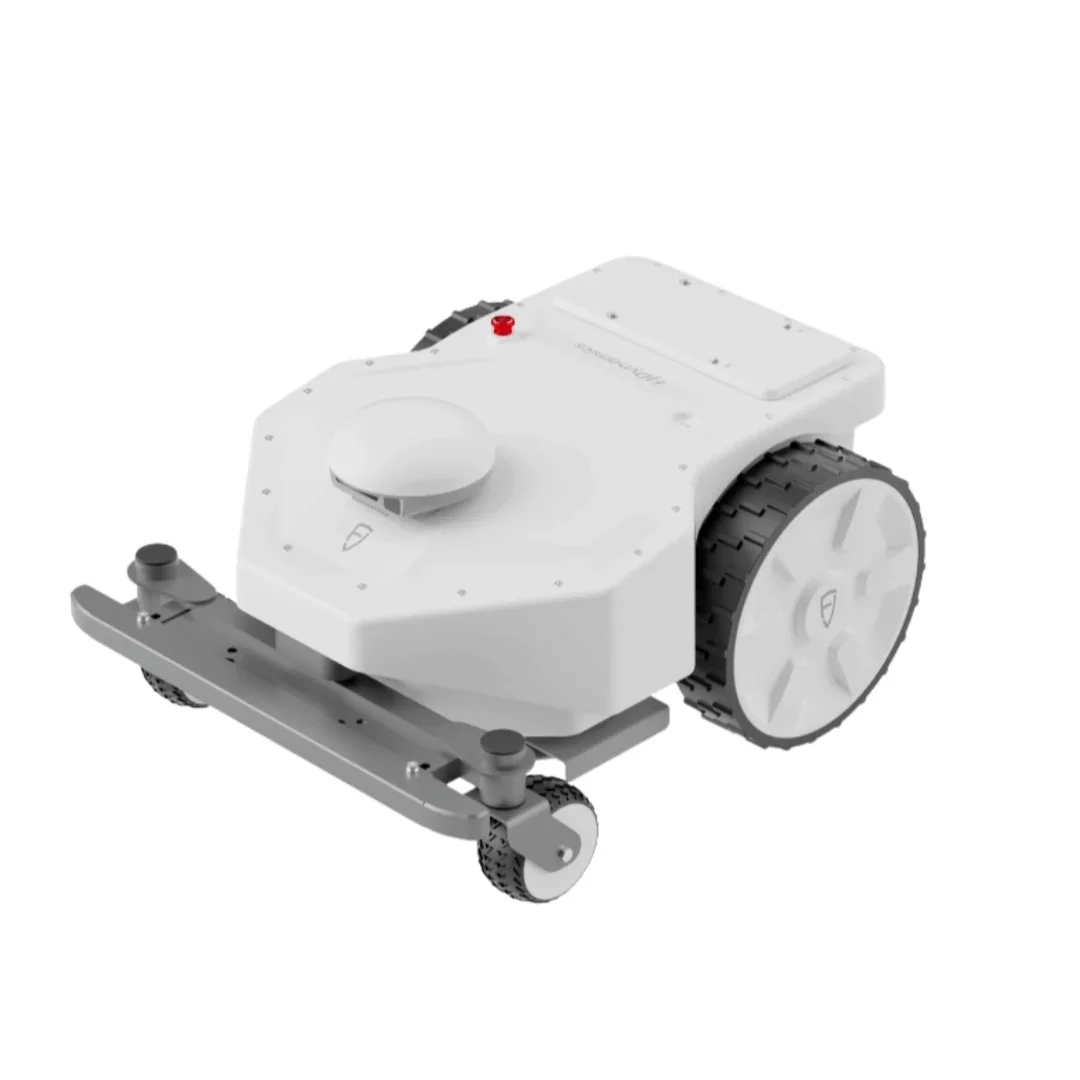

FRX
The FJD FRX is an autonomous robotic mower designed for professional turf maintenance across sports fields, golf courses, and large green spaces. Featuring precision cutting, RTK and vision navigation, and an advanced suspension system, it delivers consistent mowing across uneven terrain. With flexible charging options, multi-field management, and remote monitoring, the FRX helps facilities streamline turf maintenance while reducing manual labor.
Key Features
Combines RTK and vision technology for precise positioning, intelligent route planning, and obstacle avoidance, including navigation in shaded areas.
smart navigation
Features a suspension cutting system and adjustable cutting heights from 10 to 100 mm, adapting to uneven terrain for consistent mowing while reducing turf scalping.
Precision cutting
Supports fast battery swapping and automatic charging, enabling extended mowing operations with less manual intervention when equipped with compatible charging accessories.
flexible charging
multi-field management
Enables automated mowing across multiple designated areas, with fleet management, remote app controls, and monitoring for efficient turf maintenance.
Applications
Golf Courses: Automate mowing across fairways, roughs, and other suitable turf areas with adjustable cutting heights and precision navigation.
Sports Fields & Athletic Facilities: Maintain natural grass playing fields with consistent cutting, automated scheduling, and multi-field management.
Parks & Public Green Spaces: Streamline routine mowing across large public lawns, recreational areas, and maintained landscapes.
Schools & Universities: Support turf maintenance across athletic fields and suitable campus green spaces.
Professional Turf Management: Manage multiple mowing locations with fleet monitoring, customizable routes, and flexible charging options.
| Specification | Details |
|---|---|
| Dimensions | 1,278 x 782 x 739.9 mm (50.3 x 30.8 x 29.1 in.) |
| Weight | 83.7 kg (184.5 lbs) |
| Maximum Mowing Area per Charge | 8,000 m² (1.98 acres) |
| 24-Hour Mowing Coverage | Fast Battery Swapping: Up to 32,000 m² (7.9 acres) Automatic Charging: Up to 20,000 m² (4.9 acres) |
| 72-Hour Mowing Coverage | Fast Battery Swapping: Up to 96,000 m² (23.7 acres) Automatic Charging: Up to 60,000 m² (14.8 acres) |
| Cutting Width | 520 mm (20.5 inches) |
| Cutting Height | 10–100 mm (0.4–4 inches) |
| Battery Runtime | 320 minutes (5 hours 20 minutes) |
| Charging Time | 150 minutes (2 hours 30 minutes), 0–100% with 1 kWh battery and fast charging |
| Battery Capacity | 1 kWh |

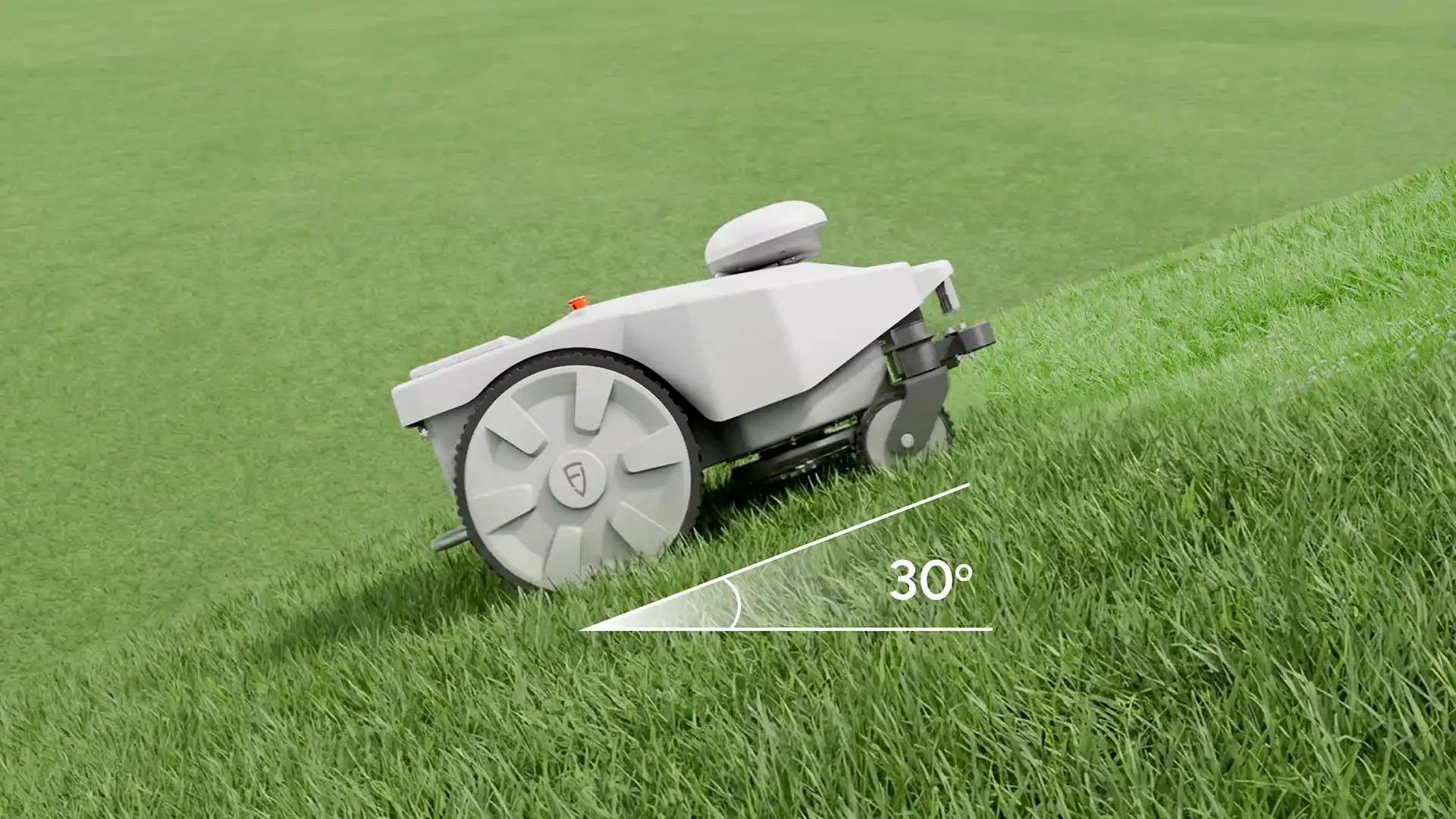

| Maximum Climbing Ability | 30° |
| Maximum Working Slope | 25° |
| Travel Speed | 0–4 km/h (0–2.5 mph) |
| Navigation | RTK and Vision |
| Boundary Type | Virtual Wire |
| Cutting Mode | Customized Angle Mowing |
| Cutting Discs | 2 discs with 6 pivoting razor blades per disc |
| Front Suspension Chassis | Yes |
| Water Resistance | IPX5 |
| Connectivity | 4G and Wireless Connectivity |
| Charging Options | Manual Charging, Automatic Charging, and Fast Battery Swapping |
| Software Updates | Over-the-Air (OTA) |
| Remote Management | Remote App Control and Fleet Management |
